Rugged Tactical Power® 3000 VA UPS
with Global Input, Maintenance Bypass
and User Replaceable Battery Drawer
Upgrade Replacement for:
NSN:
6130-01-555-7392
DRS UPSI P/N:
3000TR-III
Tactical UPS® Rugged Rack Mount 3.0 kVA UPS
Plug Compatible Replacement for DRS UPSI
3000TR-III
Including Autoranging Global Isolated Input with PFC,
Manual Bypass and Front Access Swappable Battery Module
Additional Features Include Battleshort Override, Onboard Fuse Spares
Elapsed Time Maintenance Indicator Plus Reduced Rack Space

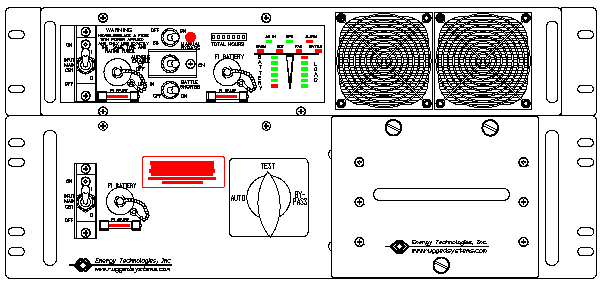

P/N: ETI0001-2205E2 Rugged Tactical UPS Standard Front Panel Layout
with 2U and 3U Battery Shown in Rack Mount Configuration
P/N: ETI0001-2205E2
Rugged Tactical UPS Standard Rear Panel Layout
with 2U and 3U Battery Shown in Rack Mount Configuration
The field proven Tactical Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged
construction, compact size and light weight design. These units are equally
suited for use in shipboard, airborne, vehicular, field deployed or fixed
locations with controlled or uncontrolled environments. The
ETI0001-2205E2 is being used as a power source in
global defense applications because of the stringent performance
and reliability requirements.
The heavy-duty UPS and Battery chasses have rounded metal corners and rugged handles front
and rear, aiding in safe handling. Internally, all major components are well
secured and electrically insulated to prevent damage due to shock and
vibration. The internal intelligent thermal sensors provide monitoring of unit temperatures, with both local and remote Battleshort override capability of thermal shutdown for emergency scenarios. Battleshort can be engaged via a remote contact input or via a software command. When in Battleshort, an audible alarm is sounded and an indicator is lit. The high intensity audible alarm can be heard in high noise environments and includes an audible enable/disable switch.
The internal shielded
input transformer provides galvanic isolation with provisions for nominal 100, 115, 120, 208, 220, 230 and 240 VAC input
voltages, 50 or 60 Hz. Special EMI/RFI filters, input power factor correction and inrush current limiting minimize both input current and harmonics.
The built-in Elapsed Time Indicator logs the hours of operation of the UPS as well as that of the equipment powered by the UPS. This can be used to plan preventative maintenance the entire system. The LED arrays keep the operator
informed as to the unit's status including load and battery levels. The
high intensity audible alarm can be heard in high noise environments. All
controls and protective devices are brought to the front and rear panels with critical
switches having finger guards. The front panel also provides easy access to both the AC Input and Battery Input fuses. Coupled with the onboard spare fuses, MTTR is reduced to less than 15 minutes.
Further, all front panel devices are recessed to
prevent damage or accidental operation. The
input circuit breaker and the galvanic isolation transformers
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The Maintenance Bypass Switch can be used to remove the UPS electronics module from service while still providing power to the connected loads.
The rear panel provides locking connectors for the input
and output power. Removable, washable air filters combined with high capacity
stainless steel ball bearing fans provide added protection in both controlled and hostile
environments. The exhaust air is diverted out the rear vents, with
alternate air flow directions optional.
The
ETI0001-2205E2
has the added benefit of
having a field replaceable battery via front drawout battery module. The external battery connector allows the safe and easy addition of
the standard or extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
Battery
Technology section. The
Status connector provides an interface with optional computer software
providing loss of AC and low battery status as well as remote shut down
capability.
See
ETI0001-2205E1 for
the standard height version (6U total versus 5U) of this unit that is totally backward compatible.
See the Power Distribution Units section for a
listing of stand alone PDUs. See the N5 Series section for
versions of UPS with an integrated PDU and remote control.
Overall, the Military Power line is uniquely qualified for critical
shipboard, vehicle, airborne or land based systems combining advanced modular design
features with highly reliable construction.
Technical Specifications:
P/N: ETI0001-2205E2
AC OUTPUT |
Output voltage: |
120 VAC true sinewave standard,
100, 110, 115, 120, or 127 selectable output voltages |
Output rating: UPS |
3000
VA 0.7 pf standard |
Non-linear load capacity: UPS |
Up to 100% non-linear load capability w/o
derating |
Output voltage regulation: UPS |
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step) |
Overload surge capacity: UPS |
110% for 10 minutes; 125% for 30 seconds |
Harmonic distortion: UPS |
Less than 5.0% into 100% non-linear load |
Output frequency: UPS |
50 or 60 Hz user selectable
400 or 1000 Hz output available as an option |
Operational status |
AC Input status, UPS operational,
UPS alarm, Battery level, Low battery, Load level, Overload, Warm
temperature, Hot temperature, Fan fail and
Battleshort LEDs,
Alarm contacts for Loss of AC and Low Battery
+90 dB audible alarm with audible on/off switch
Optional SNMP/HTTP, Asynchronous serial COM
port |
AC INPUT |
Input voltage: |
Nominal
100, 120, 220, 240
VAC, 1-phase |
Input frequency: |
From 46 Hz to 70 Hz standard,
optional to 440 Hz |
Input power factor: |
Better than 95% typical |
Input/output isolation: |
3000 VA, up to 120 dB common mode, <5.0
mA
leakage |
Input transient suppression: |
Complies with IEEE 587 and UL 1449 |
Input control/protection: |
Guarded 2 pole 100 G shock rated circuit
breaker (CB1)
plus UPS input fuses (F2) |
Input power connections: |
MS 3102R-24-22P, 4 pin, locking |
EXTERNAL BATTERY |
External
battery type: |
Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+) |
External battery life: |
Rated for continuous service life of 5 years |
External DC protection: |
Front panel mounted fuses (F1) |
Internal battery time: |
Standard battery module: 5 minutes @ 2100
watts load |
Internal battery recharge: |
Recharged to 95% in <5 hours |
Internal battery replacement: |
Hot swap
drawout/plug-in module from front of unit
<3 minutes to change battery modules |
Battery expansion: |
Up to 24 hours w/ Battery Expansion Modules |
DISTRIBUTION PANEL |
Output circuits: |
Six AC outputs
standard |
Output control: |
Circuit breaker (CB1)
Battleshort to inhibit shutdown when engaged
Optional Remote ON/OFF of each load |
Output receptacles: AC output |
NEMA 5-20R
3-pin standard |
MECHANICAL |
Dimensions (H x D x W):
2U UPS Module
3U Battery Module |
3.50 (2U) x 23.5 x 19.0 in (89 x 597 x 483 mm)
5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm) |
Rack Slide Mount Patterns: |
Jonathan, General Devices
patterns, others optional |
Alternate Mounting Options: |
Table, Wall, Floor, Portable,
Horizontal/Vertical |
Unit weight:
2U UPS Module
3U Battery Module |
37 lb. (17 kg) UPS with lift
handles front and rear
95 lb. (43 kg) Battery with lift handles front and rear |
Audible noise: |
Less than 59 dB @ 5.0 ft., ANSI "A"
scale |
Cooling type: |
High capacity, positive pressure, forced air |
Cooling air direction: |
Front intake, exhaust to rear,
others optional |
Air intake filter: |
Washable metal filter media, others optional |
ENVIRONMENTAL |
Storage temperature: |
-40° to 158° F ambient (-40° to 70° C) with fully charged batteries |
Operating temperature: |
-4° to 131° F ambient ( -20° to 55° C), lower/ higher optional |
Operating humidity: |
0 to 95% relative humidity (non-condensing) |
Storage elevation: |
Up to 49,212
ft (15,000 m) |
Operating elevation: |
Up to 15,000 ft (4,572 m), higher optional |
STANDARDS |
United States: |
Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810F, 901D Grade A, 1399-300A & 2000
|
Canada: |
CSA C22.2 No. 107 UPS safety requirements |
EMI Protection: |
EMI/RFI FCC Part 15, Class A;
EN55022; Optional MIL
STD 461E |
OPTIONAL ACCESSORIES |
|
Autoranging International Input,
Emergency Power Off, Elapsed Time Meter, Alternate I/O Configurations, Battery Expansion, Batteryless Operation, Battery
Charger/Conditioner, Power Distribution Units, Software
Interface, Asynchronous serial COM port, 10BaseT
Ethernet SNMP/HTTP port, Transport Cases,
Slides and Mounting Kits |
