Part Number: ETI0001-1008
Model: ETI0001-N1A13-I/2.0
Rugged COTS 2000 VA Rackmount UPS
BGPHES, DTC-2, TAC-3, NTCSA, JMCIS,
JMOC, JMICS, SPAWAR Standard
Product
Standard N1 Configuration, Rugged PowerÔ Isolated UPS
2000 VA Rugged Rack Mount, Modular Power System

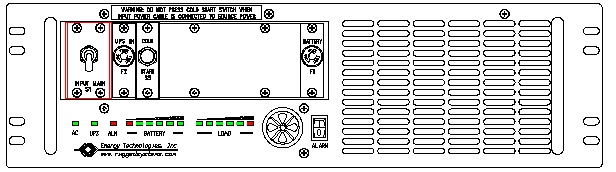

ETI0001-1008 Rugged COTS UPS Standard Front Panel Layout

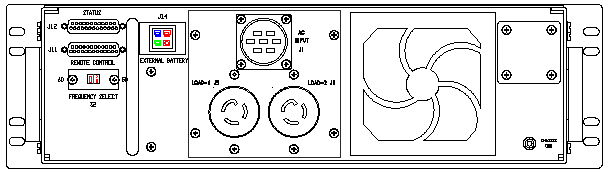

ETI0001-1008 Rugged COTS UPS Standard Rear Panel Layout
The field proven Rugged Power™ UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged
construction, compact size and light weight design. These units are equally
suited for use in shipboard, airborne, vehicular, field deployed or fixed
locations with controlled or uncontrolled environments. The "ETI0001-1008"
was initially designed for US Navy shipboard applications, becoming the standard
for several programs.
The heavy-duty chassis occupies only 3U (5.25") of rack space while delivering up to
2000 VA of clean, uninterruptible power. The rounded metal corners and rugged handles, aid
in safe handling. Internally, all major components are well secured and electrically
insulated to prevent damage due to shock and vibration. The optional mounting kit includes flanges and legs for either
horizontal or vertical positioning.
The internal shielded
input transformer provides galvanic isolation with provisions for domestic (115
VAC, CONUS) and optionally for international (230 VAC, OCONUS) input
voltages. For
field deployed scenarios, the Cold Start feature allows the unit to run from its
battery module before external AC is available. The
input switch and the galvanic isolation transformer
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The LED arrays
keep the operator informed as to the unit's status including load and battery levels. The
high intensity audible alarm can be heard in high noise environments, yet is easily
adjustable to suit quieter conditions. All controls and protective devices are brought to
the front and rear panels with critical switches or breakers guarded. Further, all front panel
devices are recessed to prevent damage or accidental operation. Various
optional power distribution controls are available which mount on the front panel or
remotely.
The rear panel provides locking connectors for the input and output power. Multiple
input and output power panel options are available. A removable and washable intake air filter and high
capacity stainless steel ball bearing fan provide added protection in both controlled and hostile
environments. The air is drawn from the rear and exhaust air is diverted out the front vent, with alternate
air flow directions optional. The external battery connector allows the safe and easy addition of
extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
Battery
Technology section. The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to 60 hertz power. A frequency selection switch
is available for those sites requiring 50 hertz output instead of the standard 60 hertz.
The Status connector provides an interface with
optional computer software providing loss of AC and low battery status as well as remote shut down
capability.
See the Power Distribution Units section for a
listing of stand alone PDUs. See the N5 Series ETI0001-1404
for a version of this UPS with an integrated PDU and remote control.
Overall, the Rugged Power line is uniquely qualified for critical shipboard, vehicle,
airborne or land based systems combining advanced modular design features with highly
reliable construction
Technical Specifications: ETI0001-1008
| AC OUTPUT |
| Output voltage: UPS |
120 VAC true sinewave standard, up to 600 VAC optional |
| Output rating: UPS |
2000 VA standard in 3U chassis
0.65-0.75 pf standard, optional configurations to 24,000 VA |
| Non-linear load capacity: UPS |
Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS |
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step) |
| Overload surge capacity: UPS |
110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: UPS |
Less than 5.0% into 100% non-linear load |
| Output frequency: UPS |
60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
400 or 1000 Hz
output available as an option |
| Operational status |
Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off |
| AC INPUT |
| Input voltage selection: |
Nominal 115 VAC, optional
autoranging input of 85-270 VAC |
| Input voltage tolerance: UPS |
85-135 VAC @ full load without
using battery, to 70 VAC @ 75% load |
| Input frequency: |
From 46 Hz to 70 Hz standard,
optional to 440 Hz |
| Input/output isolation: |
2500 VA, up to 120 dB common mode, <5
mA
leakage |
| Input transient suppression: |
Complies with IEEE 587 and UL 1449 |
| Input control/protection: |
Guarded 2 pole
circuit breaker plus fuse
Guarded cold start to turn on w/o AC present |
| Input power connection: |
AMP CPC Type XII, 7 pin locking, various options |
| INTERNAL BATTERY |
|
Battery type: |
Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+) |
| Battery life: |
Rated for continuous service life of 5 years |
| DC protection: |
Front panel mounted fuse
standard, breaker optional |
| Battery expansion: |
Up to 24 hours w/ Battery Expansion Modules |
| DISTRIBUTION PANEL |
| Output circuits: |
Two outputs standard, up to eight optional |
| Output control: |
Optional panel switches or breakers
Optional remote interlock ON/OFF control |
| Output receptacles: |
NEMA L5-30R twist locking standard, various options |
| MECHANICAL |
| Dimensions ( H x D x W ): UPS |
5.25 (3U) x 23.5 x 19.0 in (133
x 597 x 483 mm) |
| Rack Slide Mount Patterns: |
Jonathan, General Devices
patterns, others optional |
| Alternate Mounting Options: |
Table, Wall, Floor, Portable, Horizontal/Vertical |
| Unit weight: |
105 lb. (48 kg) with lift handles front and rear |
| Audible noise: |
Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: |
High capacity, positive pressure, forced air |
| Cooling air direction: |
Rear intake, exhaust to front,
others optional |
| Air intake filter: |
Washable filter media, others optional |
| ENVIRONMENTAL |
| Storage temperature: |
-13° to 140° F ambient (-25° to 60° C),
lower/higher optional |
| Operating temperature: |
32° to 113° F ambient (0° to 45° C
), lower/higher optional |
| Operating humidity: |
0 to 95% relative humidity (non-condensing) |
| Storage elevation: |
Up to 40,000 ft (12,192 m) |
| Operating elevation: |
Up to 15,000 ft (4,572 m), higher optional |
| STANDARDS |
| United States: |
Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810, 901D, 1399-300A, & 2000 |
| Canada: |
CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: |
EMI/RFI FCC Part 15, Class A standard, MIL
STD 461 optional |
| OPTIONAL ACCESSORIES |
| |
Autoranging International Input,
Emergency Power Off, Elapsed Time Meter, Alternate I/O Configurations, Dual Source
Input, Battery Expansion, Batteryless Operation, Battery
Charger/Conditioner, Power Distribution Units, Software
Interface, Asynchronous serial
COM port, 10BaseT Ethernet SNMP/HTTP
port, Transport
Cases, Slides and Mounting Kits |
